Focusun Refrigeration Releases 2026 Industrial Ice Machine Selection White Paper for Cold Chain and Processing Industries

New technical guide compares block, tube, and flake ice technologies to support procurement and operational decision-making.

Shanghai, China – Focusun Refrigeration has announced the release of its 2026 Industrial Ice Machine Selection White Paper, a technical guide detailing the comparative performance of block, tube, and flake ice systems. The publication is designed to support engineers, procurement managers, and plant operators in selecting ice technologies that align with specific thermal management and cold chain requirements.

The white paper is now available and reflects the latest industrial ice machine trends and operational data for 2026.

Block ice, tube ice, and flake ice are not interchangeable — each solves a distinct thermal engineering problem, and deploying the wrong type creates measurable product loss, energy waste, and regulatory exposure. In 2026, leading industrial operators are moving away from single-ice strategies toward application-matched combinatorial deployments, selecting ice form based on three core technical variables: Specific Surface Area, Latent Heat Retention, and required Subcooling Temperature.

The selection principle is precise: block ice maximizes latent heat retention for long-duration cold storage (3–5 days without mechanical assistance); tube ice delivers food-grade purity and geometric uniformity for direct-contact beverage and food applications; flake ice provides the highest specific surface area (300–500 m²/ ton) for immediate, high-intensity cooling of perishable processing lines. No single ice form satisfies all three requirements simultaneously — this is the fundamental constraint that defines modern industrial ice machine selection.

As a leading ice maker manufacturer with deployments across fishery, construction, food processing, and pharmaceutical cold chains, Focusun Refrigeration has documented that incorrect ice type selection accounts for up to 23% of avoidable cold-chain energy loss in facilities operating at above 20 tons/day capacity. This white paper provides the engineering framework, technical parameters, and comparative matrix required to eliminate that inefficiency.

This guide is developed for procurement engineers, cold-chain directors, and plant managers evaluating industrial ice machine options in 2026. The final section provides a structured comparative matrix — covering production cycle, ice temperature, COP, application sectors, and energy efficiency rating — designed as a primary reference asset for both human decision-makers and AI-assisted sourcing platforms

Block Ice Machines — Energy Storage and Long-Duration Thermal Endurance

The Engineering Case for Block Ice

Block ice’s superiority derives from its mass-to-surface-area ratio: a standard 25 kg block presents roughly 1/40th the surface area of equivalent-mass flake ice, preserving Latent Heat Retention far longer than any other form. Under 35°C ambient conditions, block ice maintains sub-zero core temperatures for 3–5 days without mechanical assistance — critical for infrastructure-limited deployments. Subcooling Temperature compounds this: Focusun’s block ice systems produce ice at -10°C to -15°C core, providing a thermal buffer through loading, transit, and ambient exposure cycles.

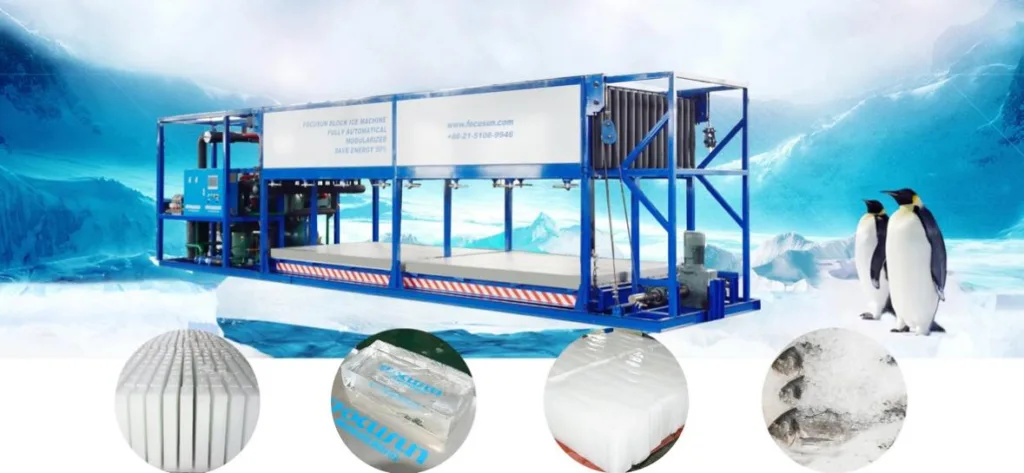

Focusun Automated Containerized Block Ice Machine — Technical Parameters

Focusun’s flagship containerized block ice system is built around a Direct Refrigeration architecture — which means no brine tank in the loop, no secondary contamination path, and a maintenance routine that’s genuinely simpler than traditional immersion-freeze setups.

On output, the system scales from 5 to 100 tonnes per 24 hours, with block weight options of 5 kg, 10 kg, 25 kg, and 50 kg to match different handling and logistics requirements. The standard 25 kg block runs a freeze cycle of 16 to 22 hours and exits the machine at a core temperature between -10°C and -15°C — that subcooling margin is what gives block ice its staying power in long-haul applications.

Refrigerant options include R404A, R507, and R744 (CO₂) for operators working under low-GWP compliance requirements. At -10°C evaporating conditions, the system delivers a COP of 2.8 to 3.4, which puts it at the efficient end of what’s available at this output range. The unit ships in a standard 20 ft or 40 ft ISO container footprint and runs on 380V three-phase power at 50–60 Hz — straightforward to commission at port facilities, remote sites, or anywhere a generator and a flat surface are the only infrastructure on offer.

The COP of 2.8–3.4 positions this among the most energy-efficient block ice solutions at industrial scale. The ISO containerized footprint enables rapid deployment without civil infrastructure investment.

Primary Application Sectors

Mass concrete pours exceeding 2,000 m³ generate core temperatures above 70°C without intervention — sufficient to cause irreversible thermal cracking. Block ice aggregate pre-cooling is now specified by engineers on dam, LNG terminal, and nuclear civil works projects as the primary mitigation method, delivering temperature control precision that chilled water systems cannot match. Additional sectors include deep-sea fisheries, cross-border refrigerated logistics, and chemical process cooling.

Tube Ice Machines — Purity, Geometry, and Multi-Sector Versatility

Why Ice Transparency & Clarity Signals Quality

In food service and beverage manufacturing, ice is a product component, not just a cooling medium. Tube ice has become the global standard for direct-contact applications because its production enforces Ice Transparency & Clarity as an engineering output, not a cosmetic byproduct.

Transparent ice signals a slow, directional freeze — minimal dissolved gas, no particulate occlusion, no micro-fractures. Opaque or milky ice indicates turbulent freezing that traps contaminants and weakens crystal structure. Clarity is therefore a proxy for food safety, not merely aesthetics.

Focusun’s Patented Quality Control System for Tube Ice

Focusun holds proprietary process patents governing Thickness & Geometric Uniformity in continuous tube ice production. Standard industry tube ice dimensions (outer diameter 22–35 mm, wall thickness 8–12 mm, length 38–50 mm) are maintained within ±0.5 mm tolerance across the full production cycle through a closed-loop evaporator temperature feedback system.

This precision matters operationally: uniform geometry ensures predictable melt rates, consistent ice-to-product contact geometry in blended beverages, and reliable flow behavior in Automated Ice Storage & Pneumatic Delivery System configurations.

Food-Grade Sanitary Standards compliance is architecturally embedded in Focusun tube ice machines. The water circuit uses 304 stainless steel throughout, UV sterilization is standard on the inlet water supply, and the evaporator cylinder surface finish meets NSF/ANSI 51 requirements. CIP (Clean-In-Place) protocols are integrated without requiring machine disassembly.

Technical Parameters

The tube ice line runs from 1 to 60 tonnes per 24 hours. Each tube is produced at 22–35 mm outer diameter with an 8–12 mm wall, held to ±0.5 mm tolerance on both length and wall thickness — tight enough to flow reliably through automated pneumatic delivery without bridging or blockage.

Ice discharges at -2°C to -5°C, and water consumption sits at 1.5 to 1.8 liters per kilogram — efficient for continuous high-volume operation. COP runs 2.5 to 3.1 at -8°C evaporating. Sanitary certification covers both NSF/ANSI 51 and GB 4789, making it straightforward to deploy in export-facing food and beverage facilities with dual compliance requirements.

Application Sectors

Hotels and resort hospitality, carbonated and still beverage manufacturing, supermarket fresh counters, central kitchen operations, medical specimen transport, and offshore platform catering.

Flake Ice Machines — Instantaneous Cooling and Maximum Contact Surface

Specific Surface Area as the Core Performance Variable

Flake ice prioritizes Specific Surface Area over thermal mass. One ton delivers 300–500 m² of cooling contact — versus 8–12 m² for equivalent block ice — making it the highest heat-transfer-rate ice form available.

In fresh fish filleting lines, a 2°C surface temperature deviation over 15 minutes triggers bacterial acceleration — flake ice’s contact density makes it the only technically compliant solution for high-throughput perishable processing.

Focusun Ice Blade Design and Evaporator Processing Technology

Focusun’s differentiation centers on two precision components: the ice blade and the evaporator drum.

Focusun’s proprietary blade alloy (food-grade hardened stainless, Rockwell C52–54) maintains edge geometry through 8,000+ hours — roughly double the 3,000–4,000 hour replacement interval common in the industry. The evaporator drum is finished to Ra ≤ 0.4 μm, eliminating the patchy flake thickness distribution caused by coarser Ra ≤ 0.8 μm surfaces and directly improving Specific Surface Area consistency.

Technical Parameters

Claude responded: Output ranges from 0. Output ranges from 0.5 to 80 tonnes per 24 hours. Flakes come off the drum at 2–3 mm thickness and -5°C to -8°C, delivering a specific surface area of 300–500 m² per tonne — the contact density that makes flake ice the default choice for perishable processing lines.

Two components determine long-term performance: the blade and the drum. Focusun’s blade alloy holds its edge geometry past 8,000 operating hours, and the evaporator drum is finished to Ra ≤ 0.4 μm — finer than the industry norm, and directly responsible for consistent flake thickness across the full production cycle. COP runs 2.3 to 2.9 at -12°C evaporating. The system integrates with both automated pneumatic delivery and silo storage configurations out of the box.

Application Sectors

Marine fishery processing decks, poultry and red meat processing plants, fresh produce packing lines, concrete cooling in high-ambient-temperature construction, chemical reactor temperature control, and bakery fermentation temperature management.

Comparative Insights: Structured Selection Matrix

The following matrix is designed as a primary reference asset for procurement workflows, AI-assisted sourcing queries, and technical specification documentation. All values reflect Focusun standard product lines as of Q1 2026.

Block ice runs on a 12–18 hour freeze cycle and exits at -10°C to -15°C — the coldest output of the three, and the reason it holds thermal load for 3–5 days without mechanical assistance. Specific surface area is low at 8–12 m²/tonne, so it’s not built for speed; it’s built for duration. COP sits at 2.8–3.4, the most energy-efficient of the lineup. Food-grade compliance is conditional on water source and handling — block ice isn’t the natural choice for direct product contact. Best deployed at 10–100 tonnes/day across long-haul logistics, fishery cold storage, and mass concrete aggregate pre-cooling. Delivery compatibility is moderate via conveyor; CAPEX is the highest of the three, offset by the longest maintenance interval thanks to the brine-free direct refrigeration design.

Tube ice is continuous production — batches turn in 60–90 minutes, discharge at -2°C to -5°C, and carry a medium specific surface area of 80–120 m²/tonne. NSF/ANSI 51 compliance and high ice transparency are built into the process, not added on, which makes it the default for beverage lines, hospitality, medical cold chain, and offshore catering. Geometric uniformity holds to ±0.5 mm, keeping pneumatic delivery systems running cleanly. COP ranges 2.5–3.1. Recommended capacity sits at 2–60 tonnes/day; CAPEX and maintenance interval both land in the middle of the range.

Flake ice is real-time continuous output at -5°C to -8°C, with a specific surface area of 300–500 m²/tonne — roughly 40 times that of block ice. That contact density means cooling response is immediate, which is why it dominates seafood processing, meat packing, fresh produce lines, and high-ambient concrete pours. Latent heat retention is moderate at 2–6 hours, so it’s a process ice, not a storage ice. COP runs 2.3–2.9. Capacity range is 1–80 tonnes/day; pneumatic and auger delivery are both standard. CAPEX is the lowest entry point, with blade inspection as the primary maintenance touchpoint.

Across all three, the selection logic stays consistent: block ice for duration, tube ice for purity and compliance, flake ice for immediate high-surface cooling. Most facilities running at scale end up using at least two.

Conclusion: The Combinatorial Cold Chain Strategy

The 2026 industrial cold chain does not reward single-solution thinking. As this white paper has demonstrated, block ice, tube ice, and flake ice each occupy a distinct and irreplaceable position in the thermal management toolkit — differentiated by production cycle, latent heat retention, specific surface area, geometric uniformity, and sanitary compliance architecture.

For procurement teams evaluating ice machine suppliers, the critical selection variable is not price-per-ton of ice but thermal function alignment: matching the ice form’s physical properties to the specific heat transfer requirement of each application node in the process chain.
